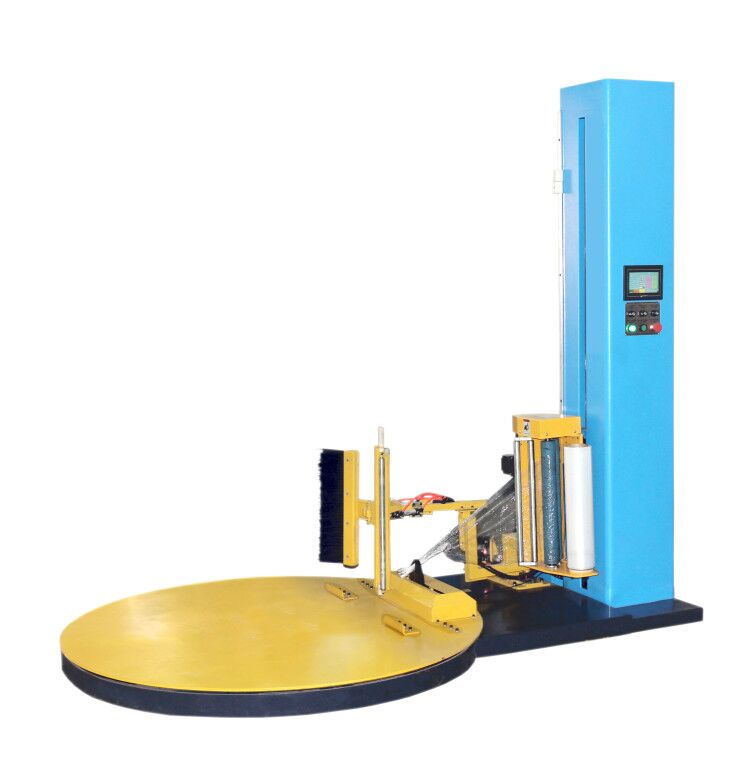

BL2000E Pallet Wrapping

1)Adopting programmable control(frequency converter), reliable in performance, convenient in operation; the lapping type and time can be designed on custommers'requirements.

2)Equipped with a photoelectric detector, antomatically testing the goods height and controlling the traval limit

3)Rotary table can reset automatically, thus ensuring correctin-and out position of the tray

4)Convenient in film roll replacement, LLDPE film with outside diameter≤280mm, width≤500mm and paper core 76mm can be used

5) Custom-made specification is available and also providing a complet set of packing system of conveying line

6) Percent of pre-stretch: 250%

BL2000E 智能遥控型全自动薄膜缠绕机.jpg



Model

BL2000E

Power supply

1phase 220V/50Hz or 3phase 380V/50Hz 1.25KW

Turn-table Diameter

φ1500mm(φ1650mm&φ2000mm are option)

Turn-table thickness

85mm

Speed of turn-table

0-12r/min

Turn-table loading

220kgs

Percent of Pre-stretch

250

Machine color

Yellow Or Gray
