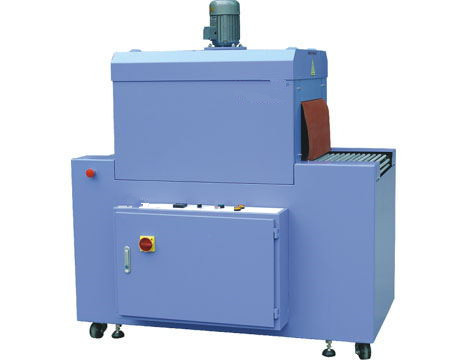

BTV4525 Shrink Packager


1) Works with all types of shrink films, but specially tunnel

     for non-PVC, polyolefin films

2)Temperature compensating solid state controllers

3)Belt conveyor with variable speed and adjustable

4) Top & side heat, Stainless-steel heater

5) Quick change seal wire with tension assembly

6)Double Magnetic Hold-down; Sealing blade on top(L sealer)

7)Sealing blade on top(L sealer)

8)Roller, wire mesh optional

9)High velocity turbo-tunnel

10) Combination unit-system runs on one circuit





Model

  BTV4525

  BTV4540

Power Supply

  220-240V,380V/50-60Hz

220-240V/380V/50-60Hz

Heater Power

  6×1.4KW Adjustable

  6×1.4KW Adjustable

Conveyor Speed

  0-15m/min

  0-15m/min

Tunnel Size

  800×450×250mm

  800×450×400mm

Shink Product Size

  400×210mm

  400×360mm

Conveyor Loading

  30kg Max.

  30kg Max.

Machine Size

  1400×920×1600mm

  1400×920×1750mm

Machine Weight

  260kg

  290kg

Shrink Film

  POF,PVC,PP

  POF,PVC,PP
